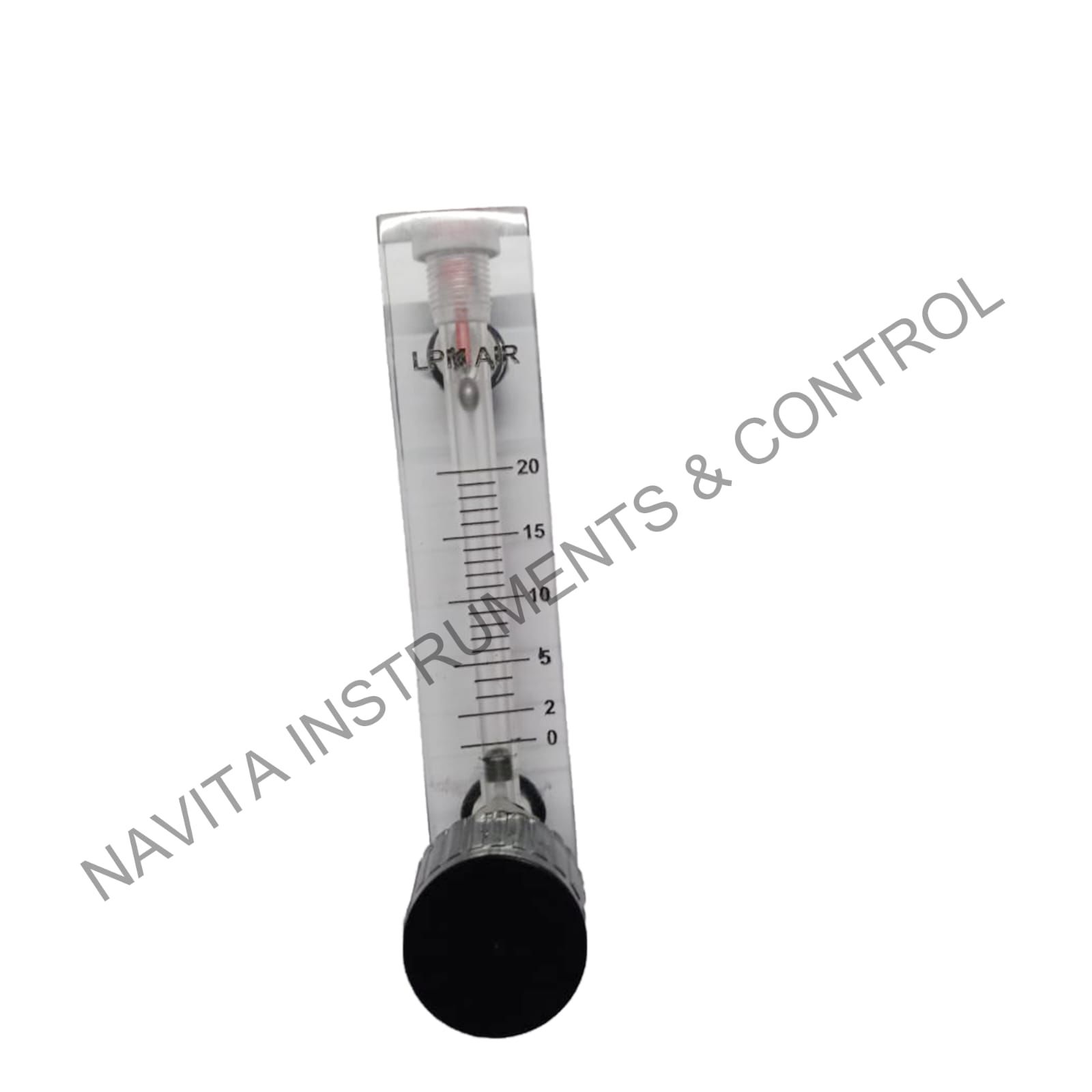

Acrylic Rotameter

Description:
Threaded Type Acrylic Rotameter is a compact variable area flow meter with threaded connections for easy installation in pipelines. The transparent acrylic tube allows direct visual observation of liquid or gas flow, and the float indicates flow rate continuously without external power.

Specifications

• Type: Variable area flow meter (rotameter)
• Tube Material: Transparent acrylic
• Float Material: Stainless steel / Aluminum / PTFE coated
• Flow Medium: Liquids or gases
• Flow Range: Model dependent, typically 0.1 to 100 L/min
• Process Connection: Threaded BSP / NPT
• Pipe Size (NB / DN): DN10 to DN50 (typical)
• Operating Pressure: Up to 10 bar
• Operating Temperature: Up to 60 °C (for standard acrylic)
• Scale: Graduated scale printed on tube or backing plate
• Mounting: Vertical (upward flow)

Applications

• Laboratory and pilot plants
• Cooling water and chemical flow measurement
• HVAC and instrumentation lines
• Food and beverage process monitoring
• Educational and demonstration purposes
