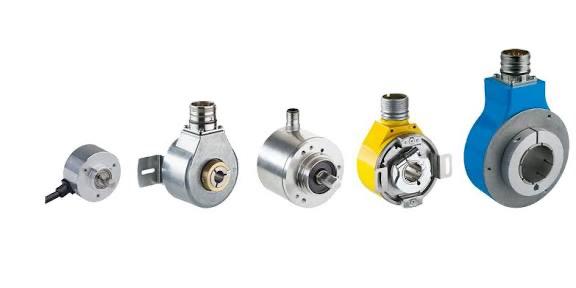

Encoder Sensors – SICK

Description:
Encoder Sensors are versatile devices that convert rotational or linear motion into electrical pulse signals. The frequency of the pulses is proportional to the speed, while the number of pulses per revolution determines the resolution. Encoders enable precise position, speed, and rotation count monitoring, making them ideal for industrial automation, robotics, and motion control.

Key Features / Specifications

• Type: Incremental / Absolute encoders
• Output Signal: TTL / HTL / Push-Pull / RS422
• Resolution: Up to 25,000 pulses per revolution (model dependent)
• Shaft Type: Solid or hollow, keyed or blind
• Shaft Diameter: 6 mm to 20 mm (typical)
• Rotational Speed: Up to 12,000 RPM (model dependent)
• Power Supply: 5 V DC / 8–30 V DC / 10–30 V DC (model dependent)
• Housing Material:Aluminum / Stainless Steel
• Protection Class: IP65 / IP67 / IP68
• Mounting: Flange, Servo mount, or Shaft coupling
• Operating Temperature: –20 °C to +70 °C (typical)

Applications

• Position and speed monitoring in motors and drives
• Robotics and conveyor systems
• Industrial automation and process control
• Rotational and linear motion feedback systems
• Packaging, printing, and material handling machinery
