Description:

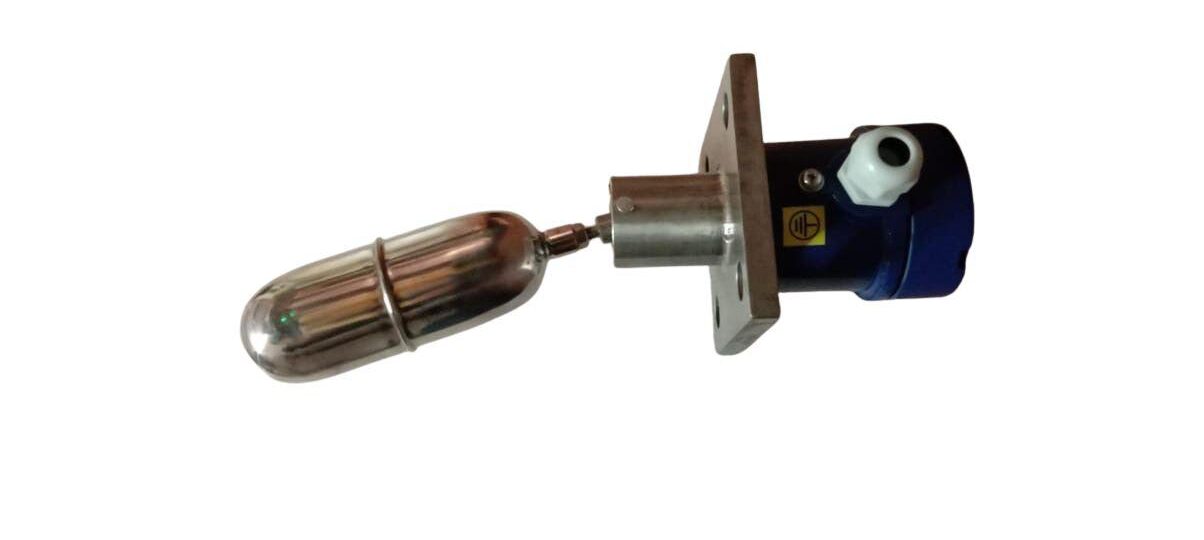

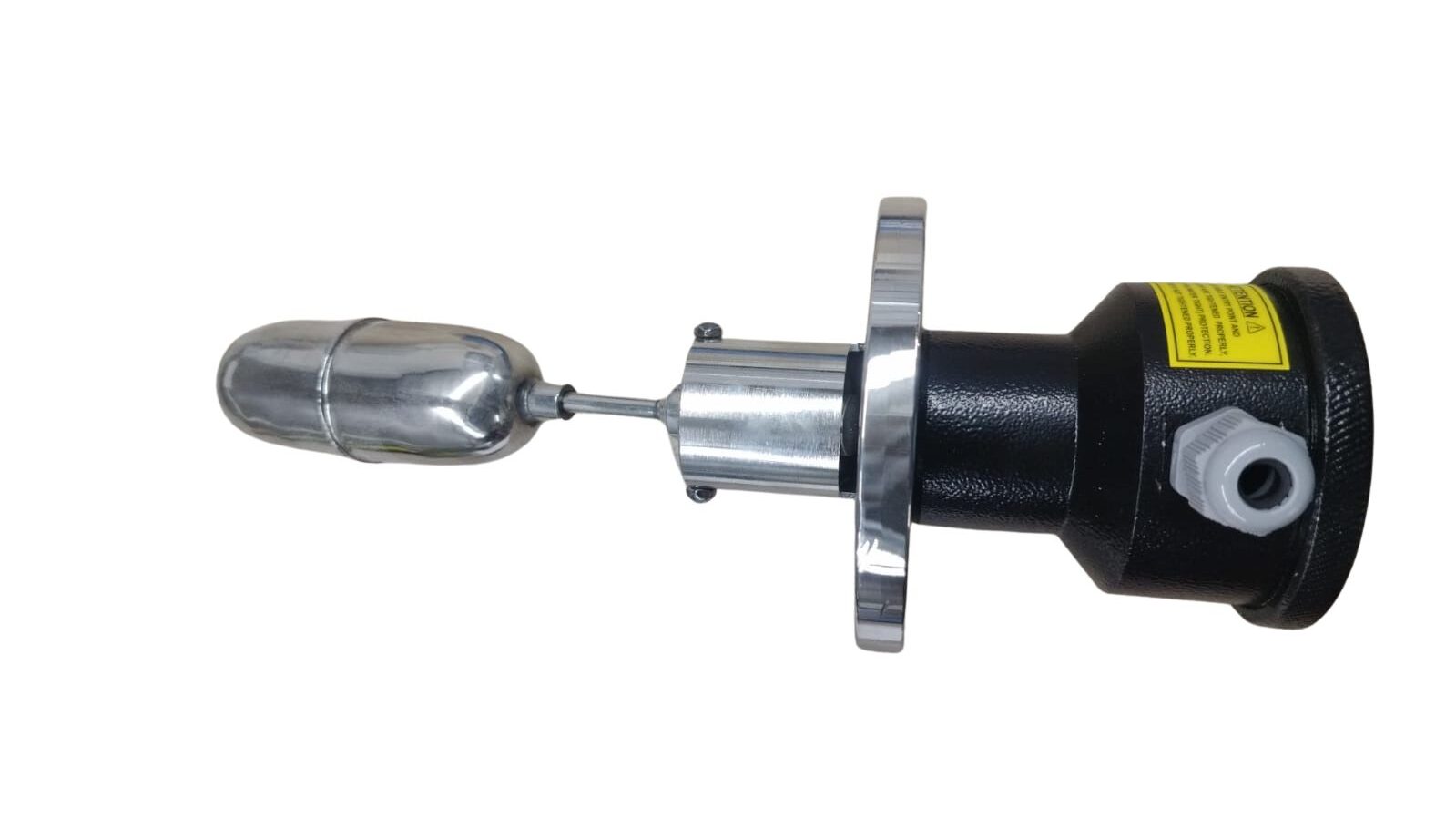

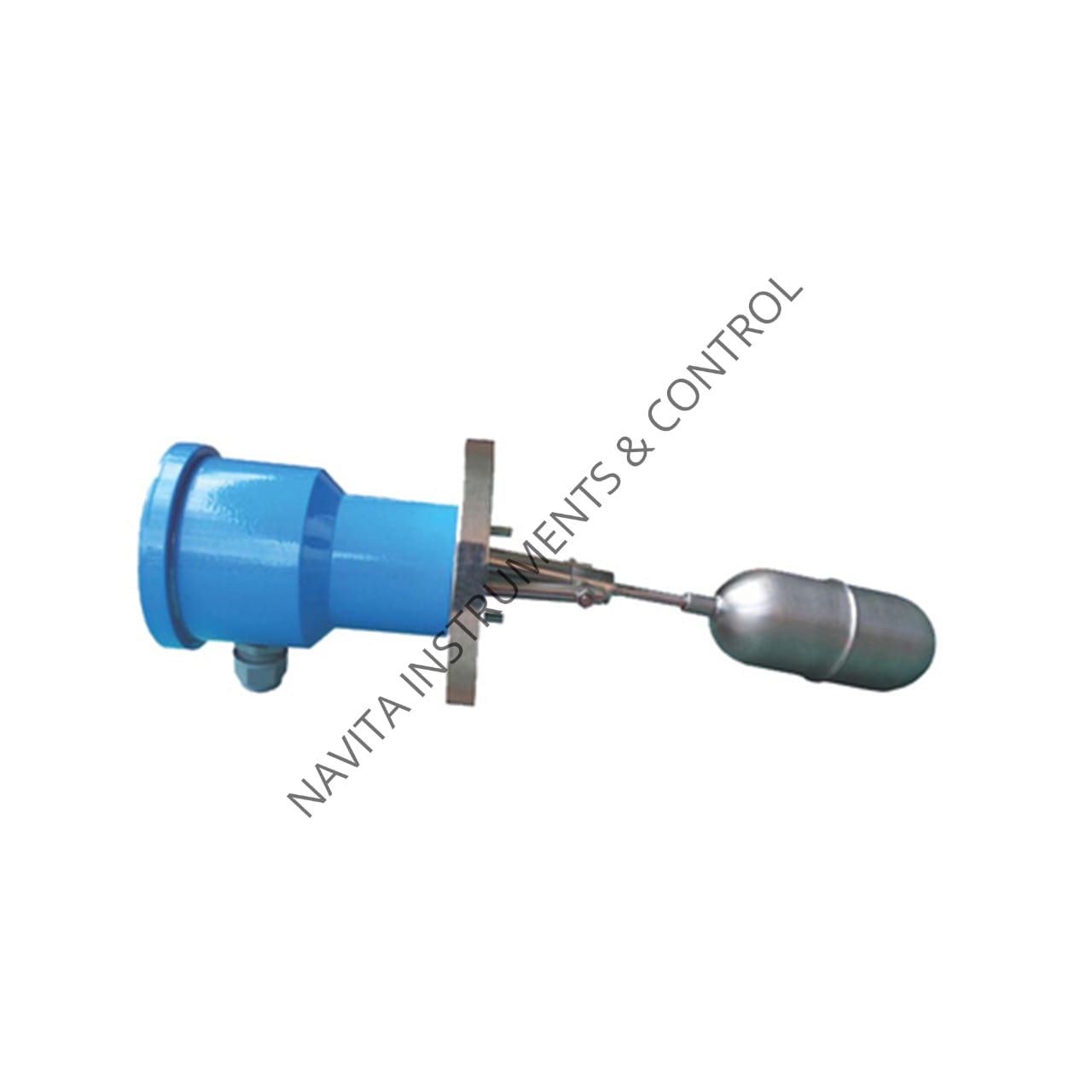

Horizontal Level Switch is a compact float-type device used for point level detection of liquids in tanks and vessels. It is mounted horizontally on the side of the tank and provides reliable ON/OFF switching for level control, alarms, and pump protection, especially where top mounting is not possible.
Specifications
- Mounting: Horizontal / Side Mount
- Minimum Liquid Specific Gravity: 1.0
- Maximum Operating Temperature: 120 °C
- Maximum Test Pressure: 2 kg/cm²
- Material of Construction (MOC): SS304 / SS316 / PP
- Process Connection: ¼″ BSP (standard) – customized connections available
- Connection Accessories: Washer and locknut provided
- Switch Action: NO to NC
- Reversible Switch Action: Available (by float orientation)
- Switch Capacity: 0.5 A
- Maximum Switching Voltage: 24 V DC
- Maximum Switching Current: 0.5 A
- Switching Differential: ±3 mm
Applications
- Water and hydrocarbons
- Edible oils, acids, and alkalies
- Storage tanks and process vessels
- Dosing and effluent treatment systems
- HVAC, chillers, and compressors
- Hydraulic and special-purpose machines
- Bilge level control in ships
