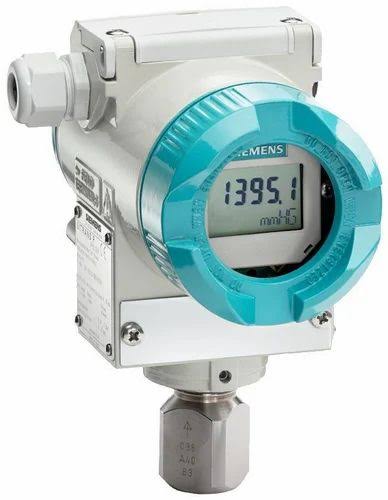

Pressure Transmitter Sensor 4–20 mA Output

Make Available:Baumer, WIKA & Local

Description:
Pressure Transmitter Sensor is designed for accurate measurement of vacuum, compound, and positive pressure in industrial applications. It provides a reliable 4–20 mA analog output, ensuring stable performance, long life cycle, and compatibility with control systems.

Specifications

• Output Signal: 4–20 mA
• Power Supply: 10–28 V DC
• Accuracy: ±0.5 % FSD
• Sensor Type: Ceramic or Silicon
• Wetted Parts Material: AISI 304
• Case Material: AISI 304
• Process Connection: 1/4″ BSP (Male)
• Overpressure Limit: 2× to 3× Full Scale
• Life Cycle:>10 million pressure cycles
• Protection Class: IP65
• Fluid Temperature: –20 °C to +80 °C

Pressure Range

• Vacuum
• Compound (±)
• Positive pressure
• 0 to 1 bar up to 1000 bar

Applications

• Pure water systems
• Air and gas pressure measurement
• General industrial automation
