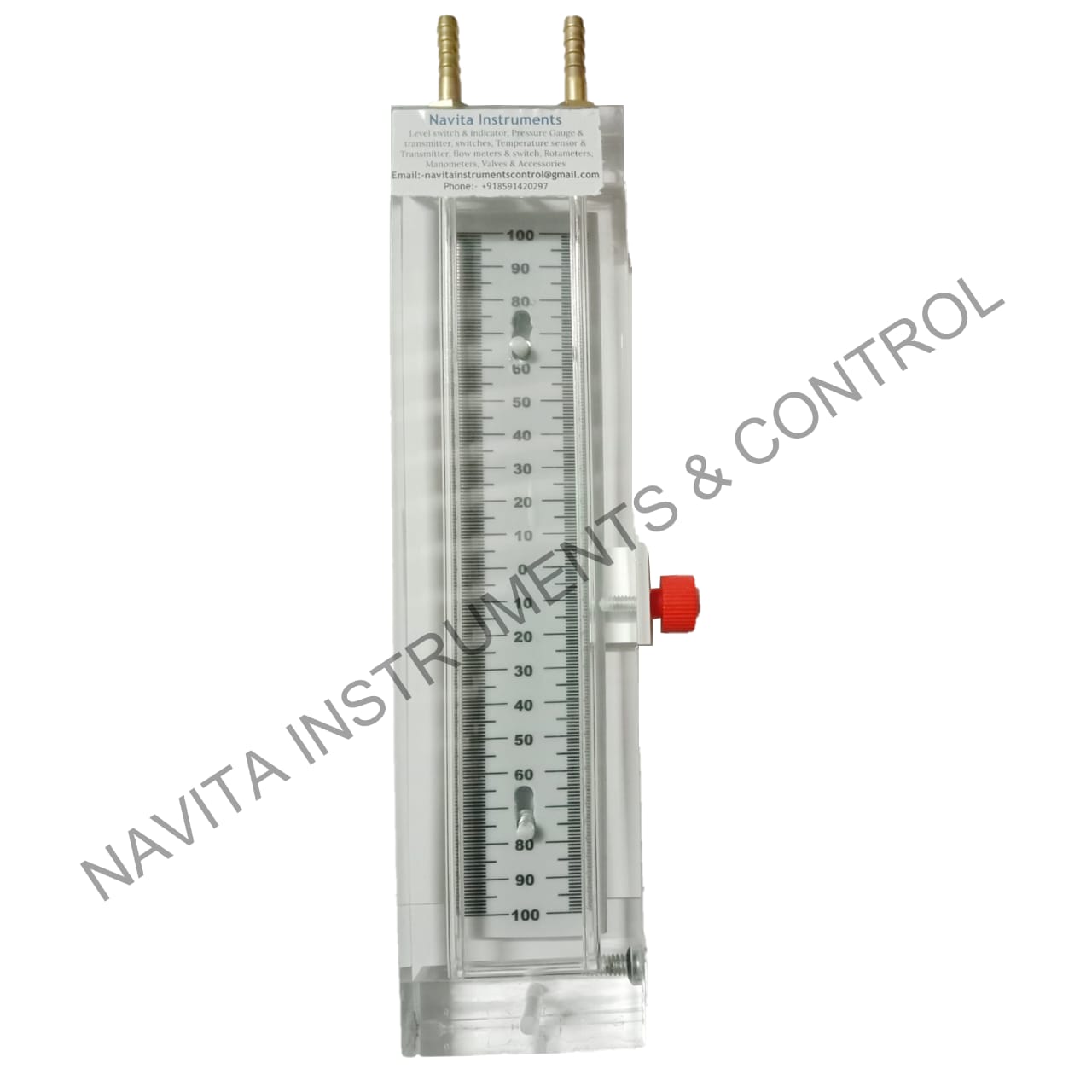

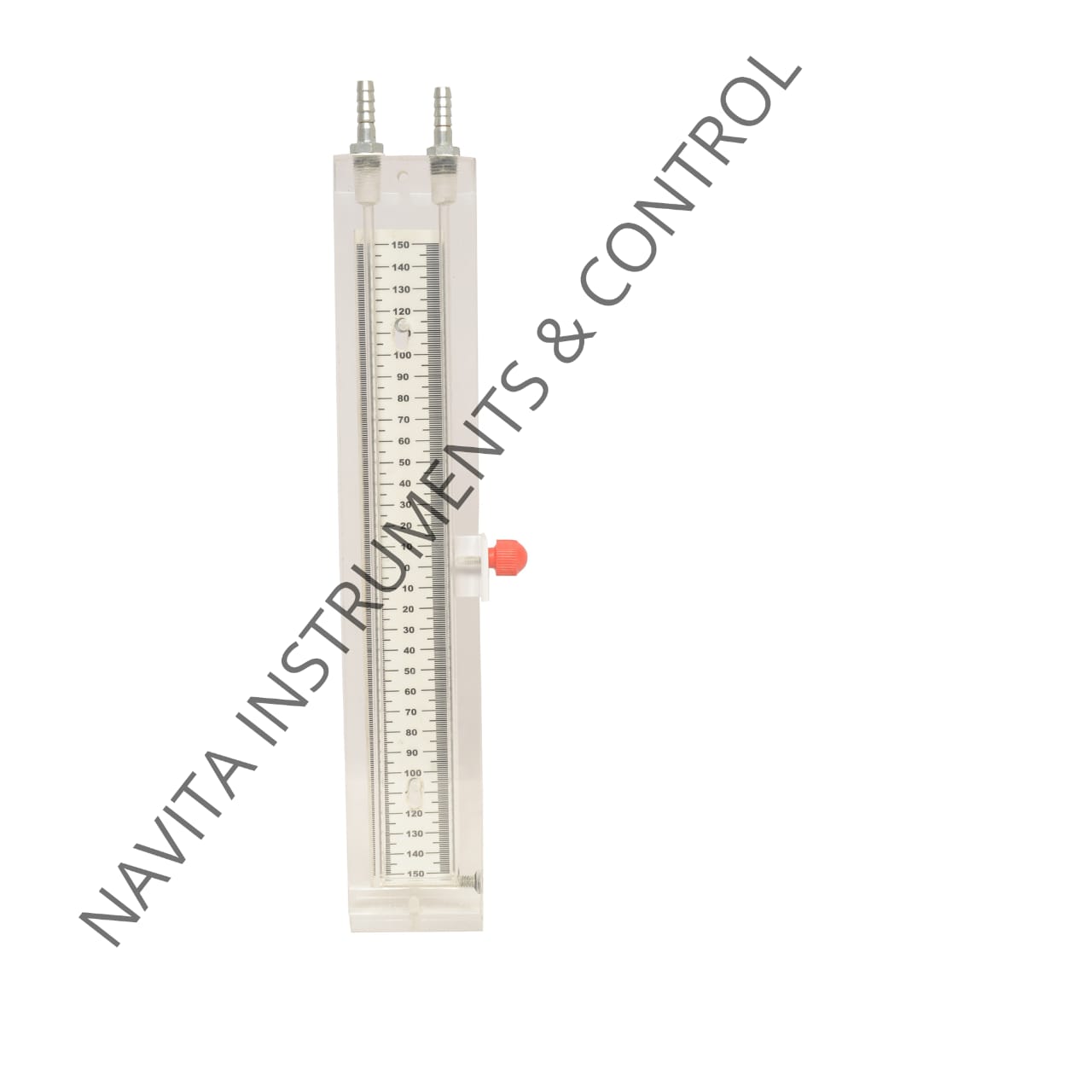

Acrylic U-Tube Manometer

Description:
Acrylic U-Tube Manometer is a simple and reliable differential pressure measuring device that uses a U-shaped tube filled with liquid (water, mercury, or colored manometer fluid). It provides visual measurement of pressure or vacuum in pipelines and process systems.

Specifications

• Type: U-tube manometer
• Tube Material: Transparent acrylic
• Scale Material: Printed or engraved on acrylic backing
• Measuring Medium: Water, mercury, or compatible manometer fluid
• Pressure Range: ± 50 mm H₂O to ±300 mm H₂O (model dependent)
• Accuracy: ±1 mm H₂O (typical)
• Process Connection: Flexible tubing / barbed / threaded adapter
• Operating Temperature: –10 °C to +60 °C (model dependent)
• Mounting: Vertical (wall-mounted or panel-mounted)
• Fluid Level Visibility: Clear, high-contrast scale

Applications

• Laboratory pressure measurements
• HVAC and duct monitoring
• Filter and pump differential pressure monitoring
• Water and wastewater treatment plants
• Educational and demonstration purposes
