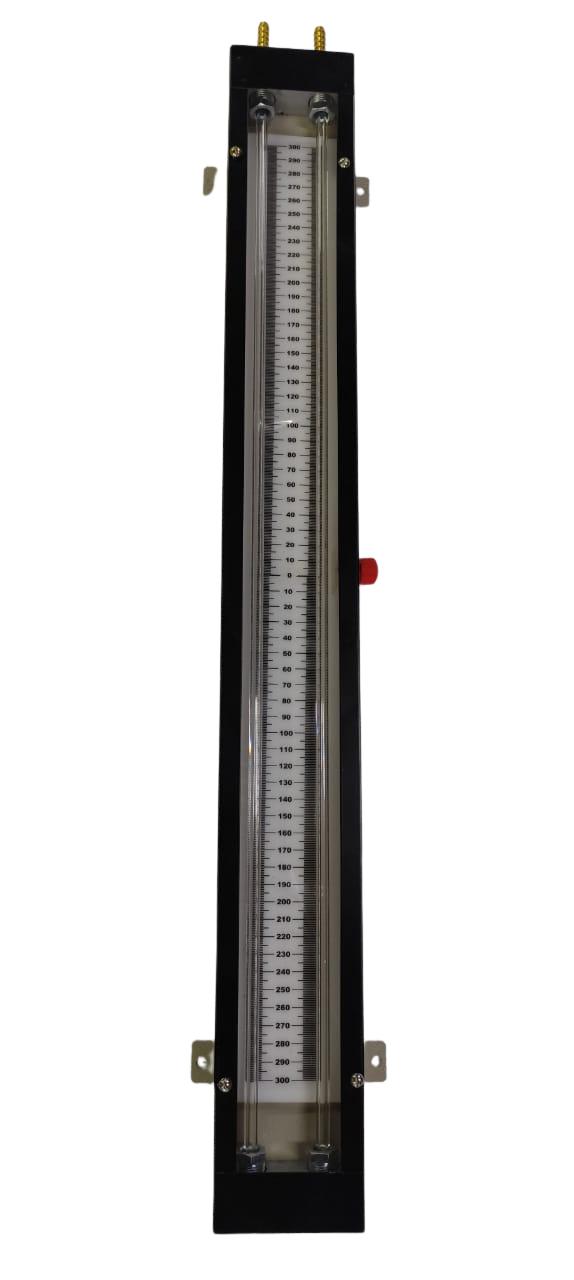

Metal Tube U-Tube Manometer

Description:
Metal Tube U-Tube Manometer is a robust differential pressure measuring device constructed with metal tubing, suitable for industrial applications. It provides accurate visual measurement of pressure or vacuum in pipelines, tanks, and process systems, especially where durability and resistance to vibration or corrosive environments are required.

Specifications

• Type: U-tube metal manometer
• Tube Material: Stainless Steel / Mild Steel / Brass
• Scale Material:Aluminum or stainless steel plate with engraved markings
• Measuring Medium: Water, mercury, or compatible manometer fluid
• Pressure Range: ±100 mm H₂O to ±5000 mm H₂O (model dependent)
• Accuracy: ±1% full scale
• Process Connection: Threaded / Flanged / Compression fittings
• Operating Temperature: –10 °C to +200 °C (model dependent)
• Mounting: Vertical wall or panel mounting
• Protection: Resistant to vibration and moderate corrosion

Applications

• Industrial process pipelines
• Boiler and steam systems
• HVAC and filter monitoring
• Water and wastewater treatment
• Chemical and petrochemical plants
