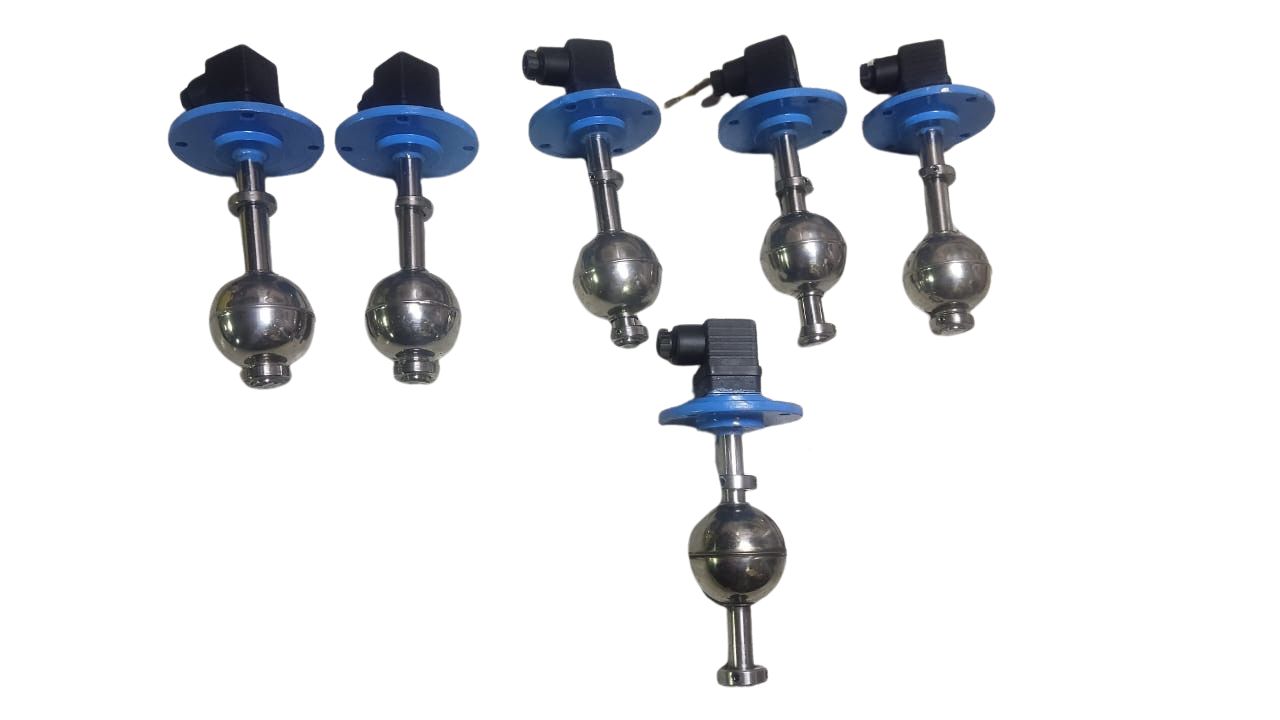

Miniature Level Switch – Top Mount

Specifications:

• Mounting Type: Top mount (vertical installation)
• Minimum Liquid Specific Gravity: 1.0
• Maximum Operating Temperature: 120 °C
• Maximum Test Pressure: 2 kg/cm²
• Material of Construction (MOC): SS304 / SS316 / PP
• Process Connection: ¼″ BSP (standard) – customized connections available
• Connection Accessories: Washer and locknut provided
• Switch Action: NO to NC
• Reversible Switch Action: Not available
• Switch Capacity: 0.5 A
• Maximum Switching Voltage: 24 V DC
• Maximum Switching Current: 0.5 A
• Switching Differential: ±3 mm

Applications:

• Water and hydrocarbons
• Edible oils, acids, and alkalies
• Food & beverage equipment
• Chiller compressors
• Plastic extruders and hydraulic machines
• Humidifiers
• Dosing systems for water and effluent treatment plants
• Bilge level control in ships
