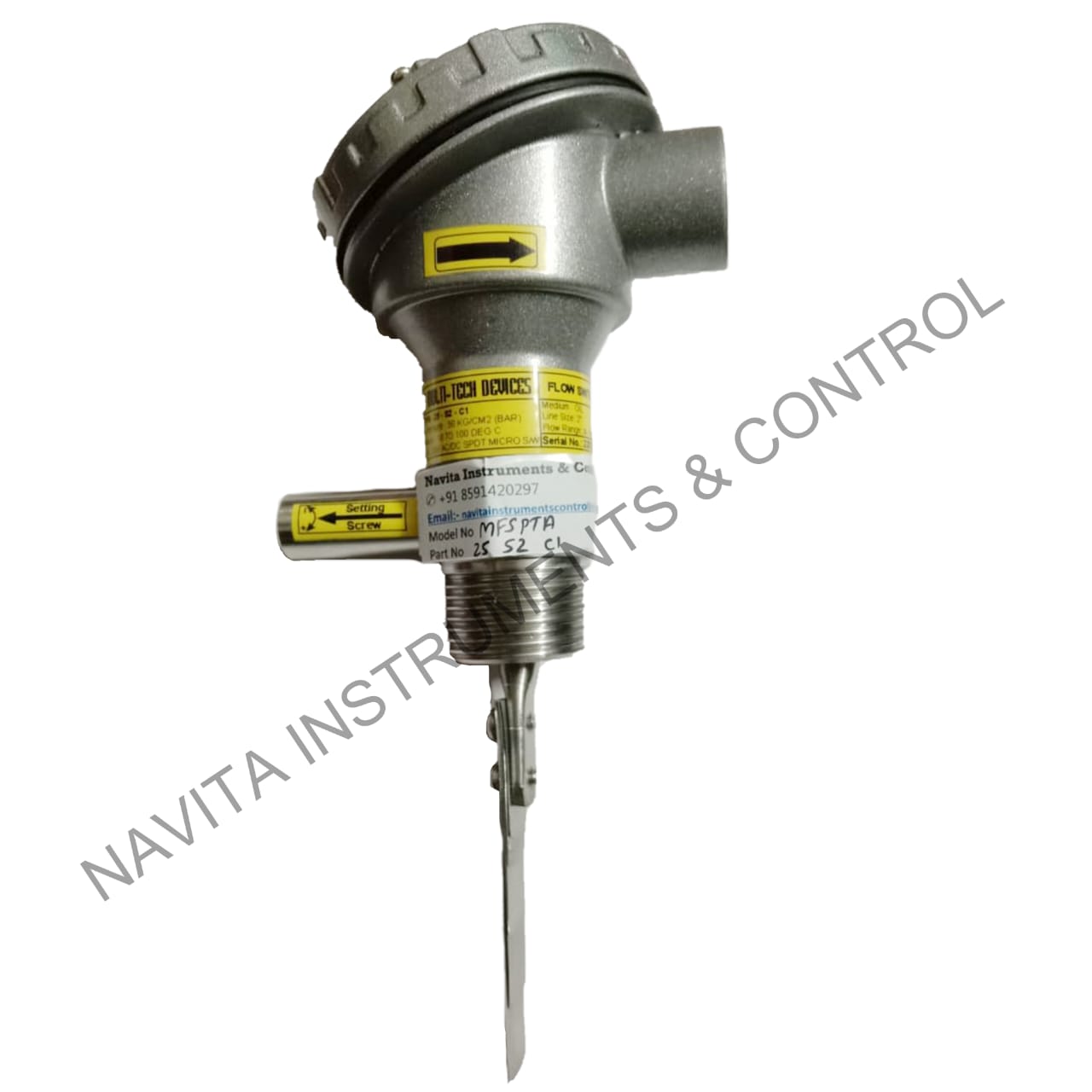

Paddle Type Flow Switch

Description:
Paddle Type Flow Switch is a mechanical flow-sensing device used to detect liquid flow in pipelines. The paddle deflects with flow and actuates a micro switch, making it ideal for pump protection, interlocking, and flow monitoring applications.

Specifications

• Type: Mechanical paddle type flow switch
• Body Material:  SS304 / SS316
• Paddle Material: SS
• Process Connection: BSP / NPT threaded or Flanged
• Pipe Size: 1″ to 8″
• Mounting: Horizontal pipeline
• Switch Output: SPDT (NO / NC)
• Switch Rating: 5 A @ 230 VAC
• Operating Pressure: Up to 10 bar
• Operating Temperature: Up to 100 °C
• Flow Setting: Adjustable
• Power Requirement: Not required

Applications

• Pump and motor protection
• Cooling water systems
• HVAC installations
• Process and utility pipelines
• Firefighting and circulation systems
