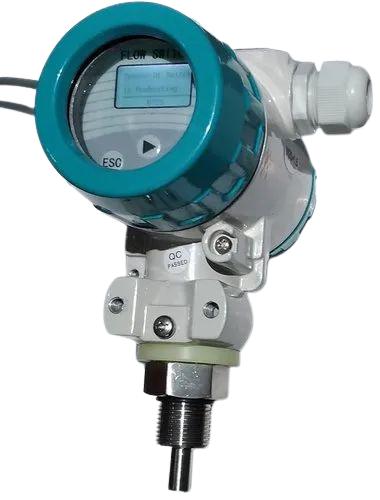

Thermal Flow Switch

Description:
Thermal Flow Switch is a contactless flow detection device that senses the flow of liquids or gases using a temperature-sensing element. It provides a switching signal to protect pumps, control systems, and processes, especially in low-flow or high-precision applications.

Specifications

• Type: Thermal
• Body Material: SS304 / SS316
• Process Connection: BSP / NPT threaded or Flanged
• Pipe Size: ½″ to 4″ (typical)
• Mounting: Inline horizontal or vertical
• Switch Output: SPDT / NO–NC
• Switch Rating: 5 A @ 230 VAC (relay output)
• Operating Pressure: Up to 16 bar
• Operating Temperature: –10 °C to +120 °C
• Power Supply: 24 V DC / 110–230 V AC (model dependent)
• Flow Sensitivity: Adjustable (factory calibrated or field adjustable)

Applications

• Pump and motor protection
• Cooling water systems
• HVAC and refrigeration circuits
• Chemical and process pipelines
• Lubrication and fuel lines
