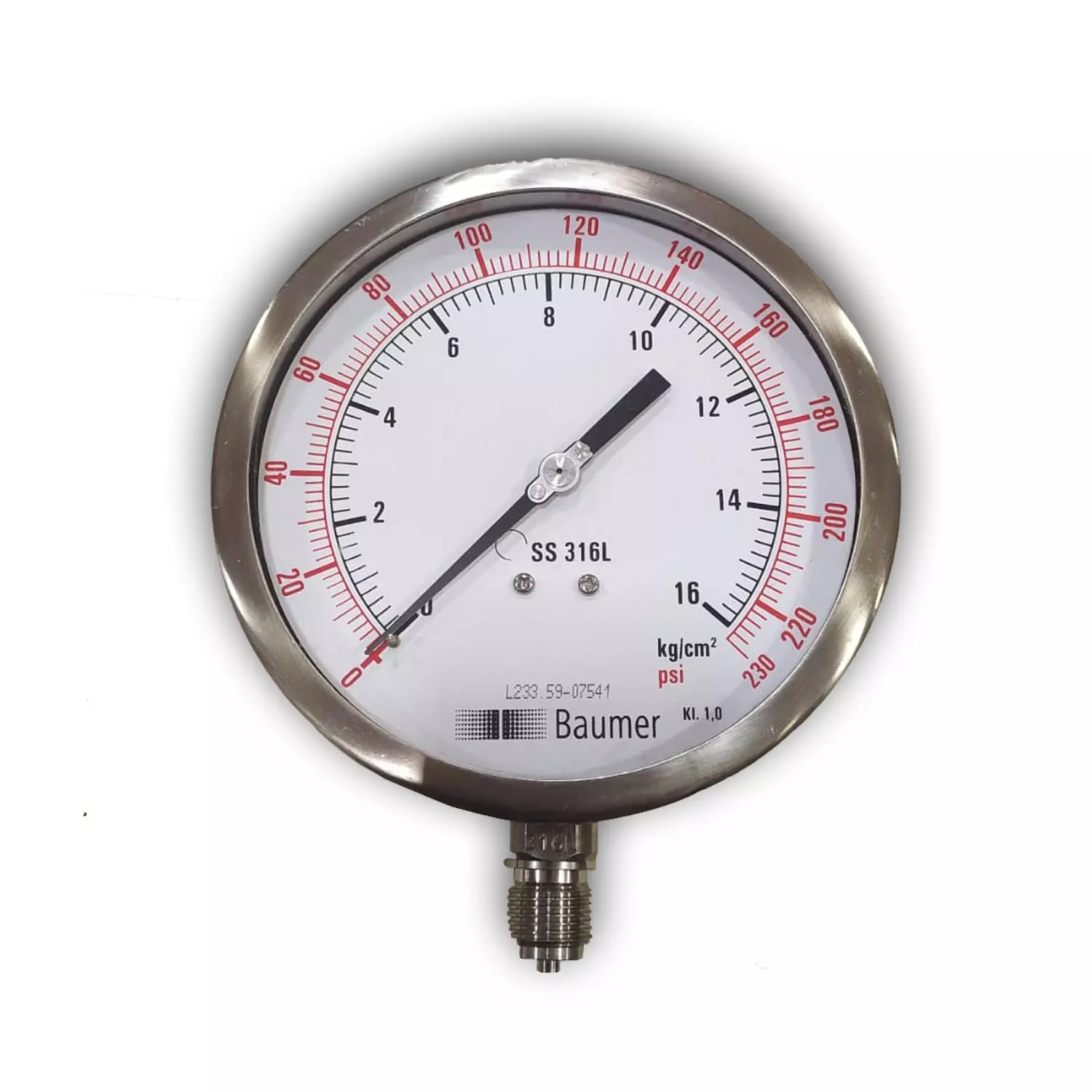

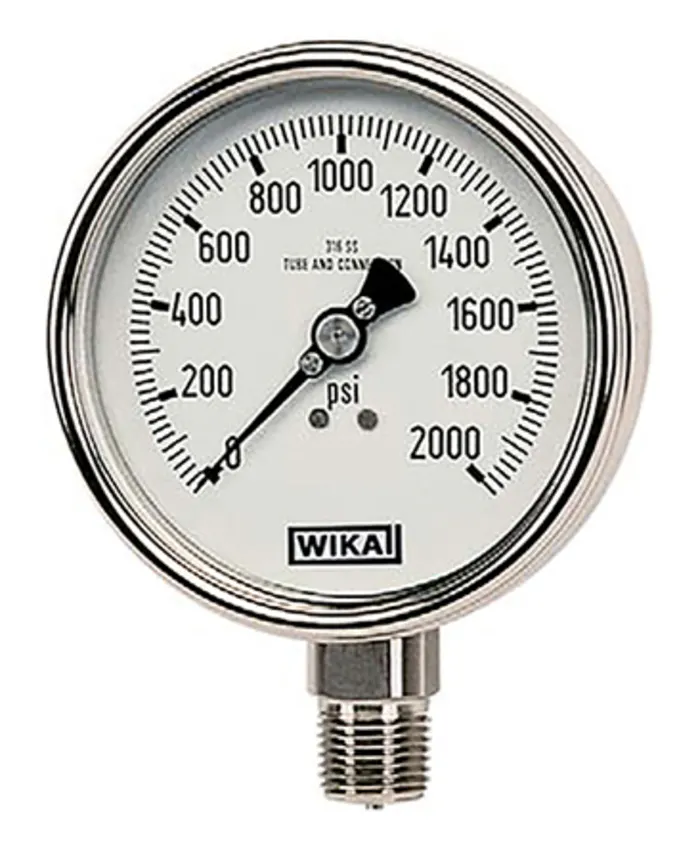

Pressure Gauge

Make :Baumer& WIKA

• Dial Sizes: 63 mm, 100 mm, 150 mm, 250 mm (common industrial sizes)
  • Pressure Range: Vacuum up to high pressure (e.g., ~0…1600 bar, depending on model)
  • Accuracy: ±1 % of full scale (typical)
  • Mounting:

• Direct bottom
• Back / panel mount
• Wall / surface mount (optional)
  • Process Connection: Standard threaded (e.g., ½″ BSP or NPT male; other sizes like ¼″/⅜″ available)
  • Construction Materials:
• Case / bezel: Stainless steel (SS304 or SS316)
• Bourdon tube: SS316 or SS316L
  • Dial & Pointer: Clear printed dial with pointer for easy reading
  • Protection: IP65 (dust & splash resistant)
  • Operating Temp: Approx. −25 °C to +65 °C (ambient)
  • Media Temp: Varies by gauge and fill fluid (higher if unfilled)
  • Standards: EN 837-1 mechanical gauge standard
  • Options: Liquid-filled for vibration damping; safety features (blow-out back)
