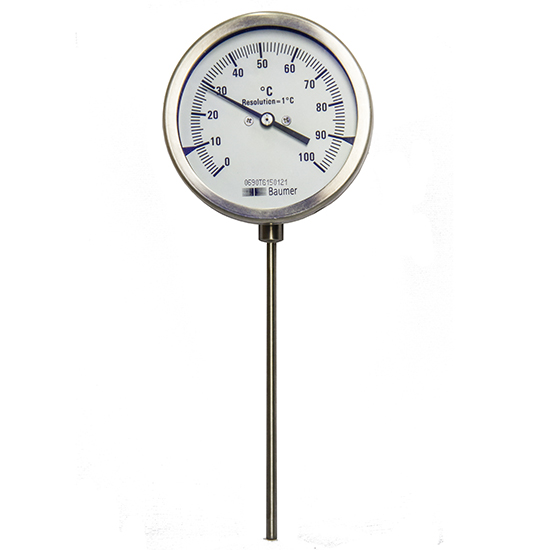

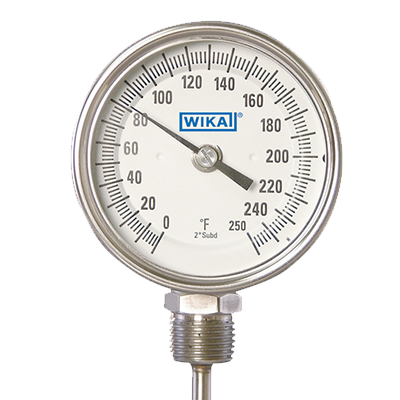

Temperature Gauge
- Temperature Range:
Typical measurement range from –50 °C up to +500 °C depending on model.
- Accuracy:
Approximately ±1 % of full scale (class accuracy for reliable readings).
- Dial Size:
Available in common sizes such as 50 mm, 63 mm, 100 mm, and 150 mm, 250 mm.
- Display:
Analog dial with clear scale and pointer for easy temperature reading.
- Sensing Element:
Bimetallic strip (mechanical type) — provides direct temperature indication without power.
- Stem/Capillary:
Comes with a rigid stem or flexible capillary depending on installation needs.
- Process Connection:
Standard threaded connection, typically ½″ male thread.
- Mounting:
Bottom entry or back entry for panel, wall, or surface mounting.
- Materials:
Case and stem usually stainless steel for corrosion resistance and durability.
- Protection:
Generally dust and splash resistant for industrial environments.
- Optional Features:
Thermowell for sensing element protection; adjustable zero; back flange for panel mounting.
