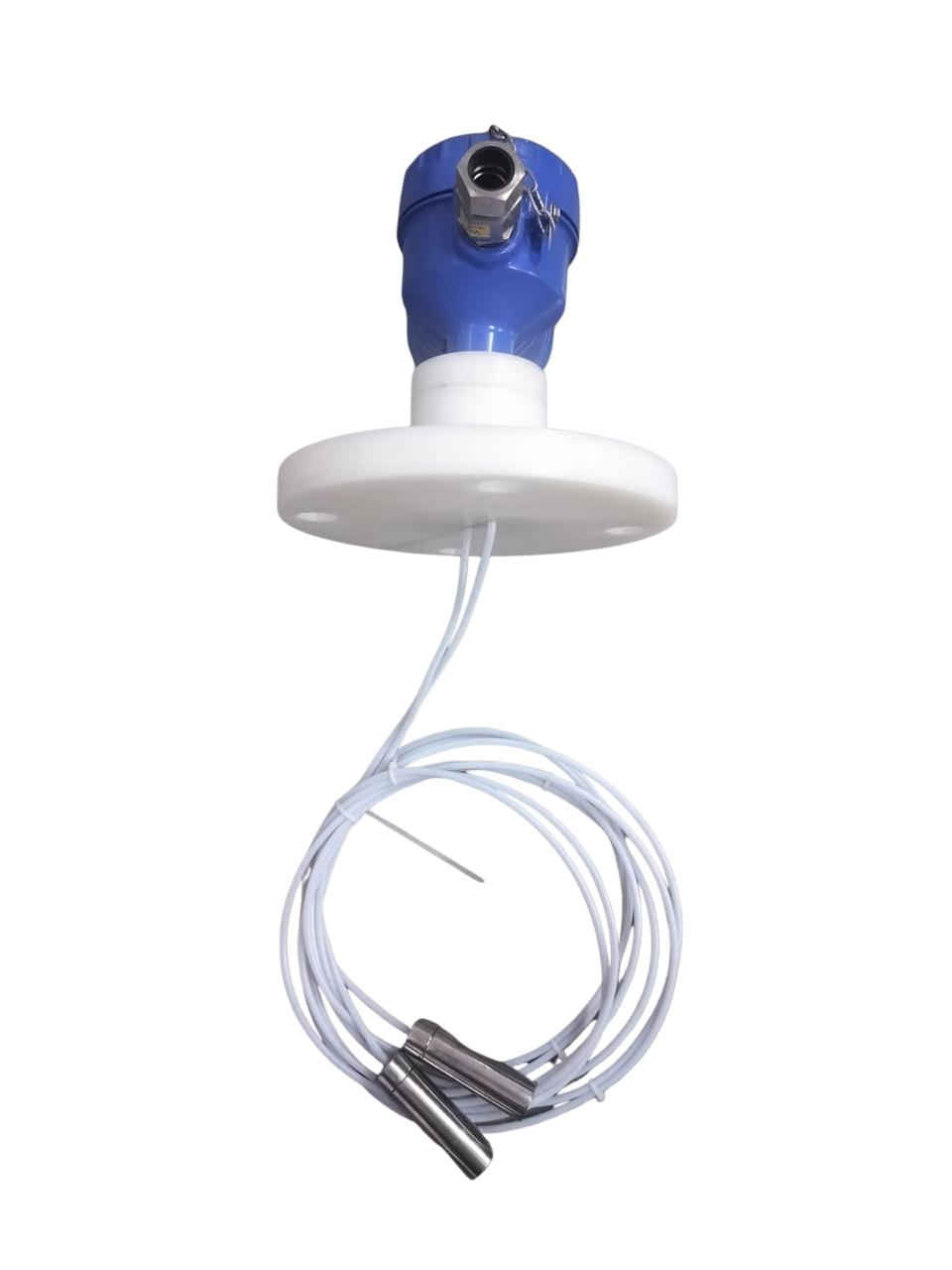

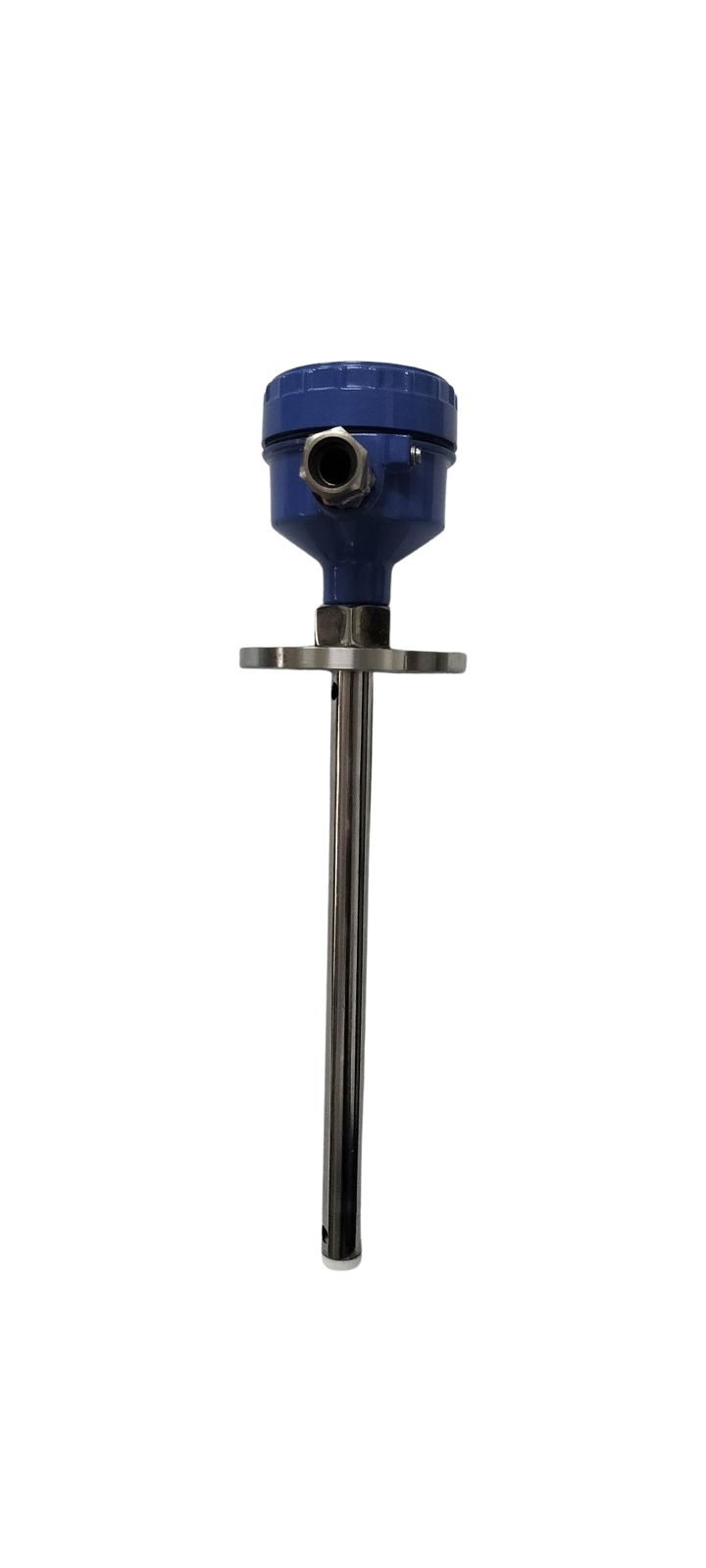

Capacitance Level Transmitter

Description:
Capacitance Level Transmitter is used for continuous level measurement of liquids, solids, and slurries. It works on the principle of change in capacitance caused by variation in level and provides a reliable 4–20 mA output for process monitoring and control.

Specifications

• Measuring Principle: Capacitance
• Application: Liquids, bulk solids, slurries
• Output Signal: 4–20 mA
• Power Supply: 12–36 V DC
• Accuracy: ±1 % of full scale (typical)
• Probe Material: SS304 / SS316 / PTFE coated
• Process Connection: Threaded or flanged – customized connections available
• Mounting: Top or side mount
• Measuring Range: As per tank height (customizable)
• Operating Temperature: Up to 200 °C (model dependent)
• Operating Pressure: Up to 25 bar (model dependent)
• Protection Class: IP65 / IP67
• Optional Features: Local display, flameproof enclosure, level switch output

Applications

• Water and liquid storage tanks
• Oils, chemicals, and corrosive liquids
• Powders and bulk solids
• Food & beverage industries
• Cement, plastic, and fertilizer industries
