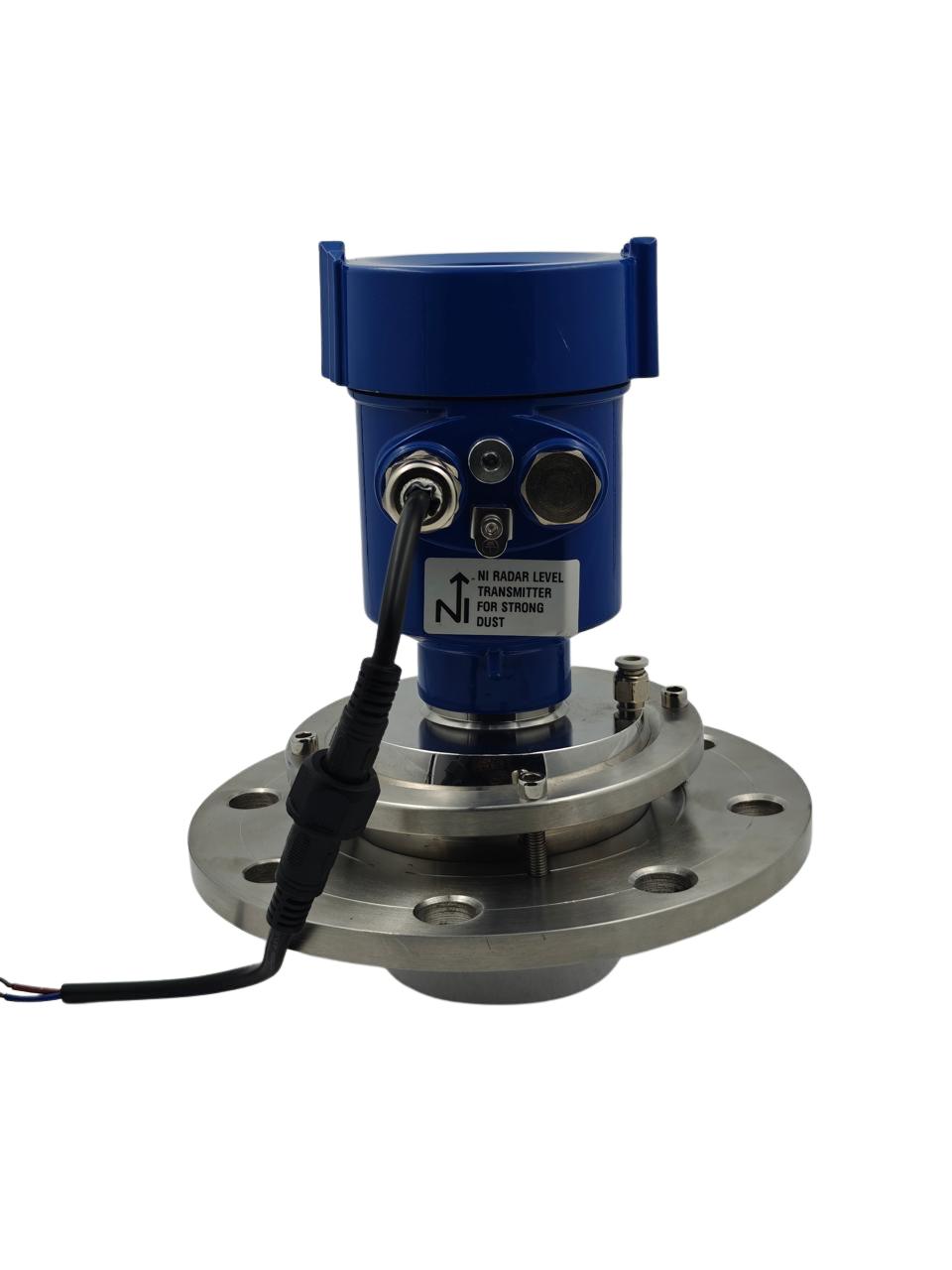

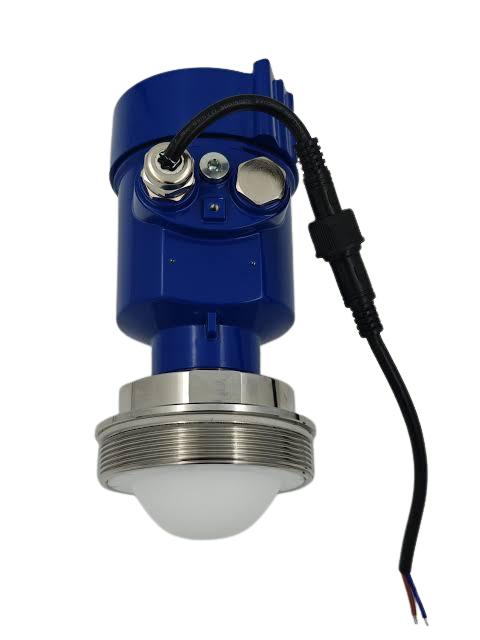

Radar Level Transmitter – 80 GHz (Liquid Level, up to 10 m)

Description:
80 GHz Radar Level Transmitter is a high-accuracy, non-contact level measurement device designed for liquid applications up to 10 meters. Using FMCW radar technology, it ensures stable and precise level measurement even in challenging process conditions such as vapor, humidity, or temperature variations.

Specifications

Radar Frequency: 76–81 GHz (80 GHz FMCW)
Measuring Range: 0.3 m to 30 m
Measurement Accuracy: ±1 mm
Beam Angle: 3° / 8°
Minimum Dielectric Constant: ≥ 2
Power Supply: 24–28 V DC
Signal Output: 4–20 mA
Communication: 4–20 mA / HART with Bluetooth
Humidity: ≤ 95 % RH
Enclosure Material: PP
Antenna Type: Lens antenna / Anti-corrosive antenna / Quartz-isolated flange
Process Temperature: –40 °C to +80 °C
Process Pressure: –0.1 to 2 MPa
Protection Class: IP67
Installation: 1.5″ BSP threaded mount
Cable Entry: M20 × 1.5
Recommended Cable: AWG 18 or 0.75 mm²
Product Size: Ø100 × 270 mm
