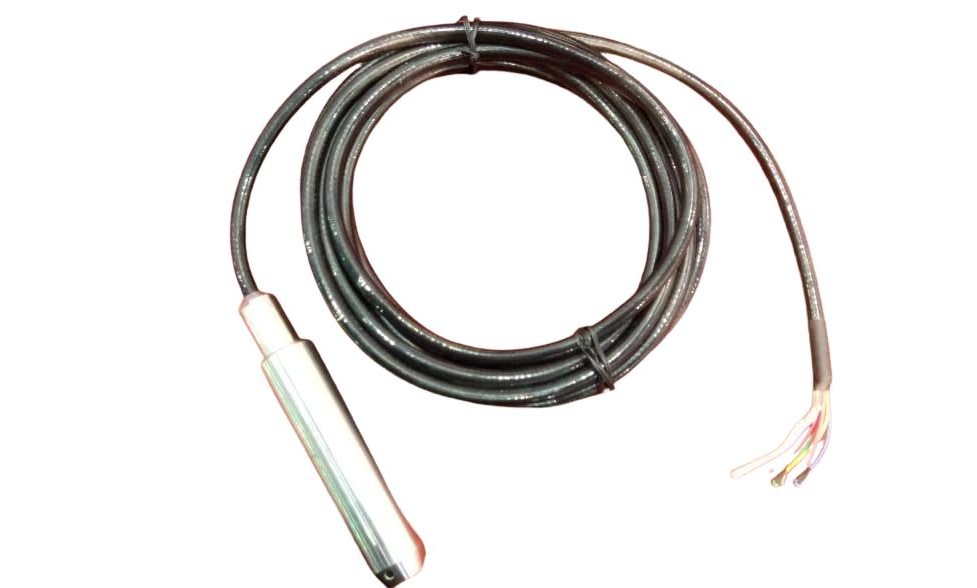

Submersible Liquid Hydrostatic Level Transmitter

Description:
Hydrostatic Level Transmitter, also known as a Submersible Level Transmitter, is designed for continuous level measurement of liquids by sensing hydrostatic pressure. It is suitable for deep tanks, wells, sumps, and marine applications, offering reliable and accurate level measurement.

Specifications

• Measuring Range: 1 to 300 meters
• Maximum Temperature: 70 °C
• Maximum Pressure: Atmospheric
• Wetted Parts Material: SS304 / SS316
• Output Signal: 4–20 mA, 2-wire
• Enclosure: On request

Applications

• Water tanks and reservoirs
• Bore wells and sumps
• Fuel oil and diesel tanks
• Marine and shipboard applications
• Non-corrosive liquid level measurement
