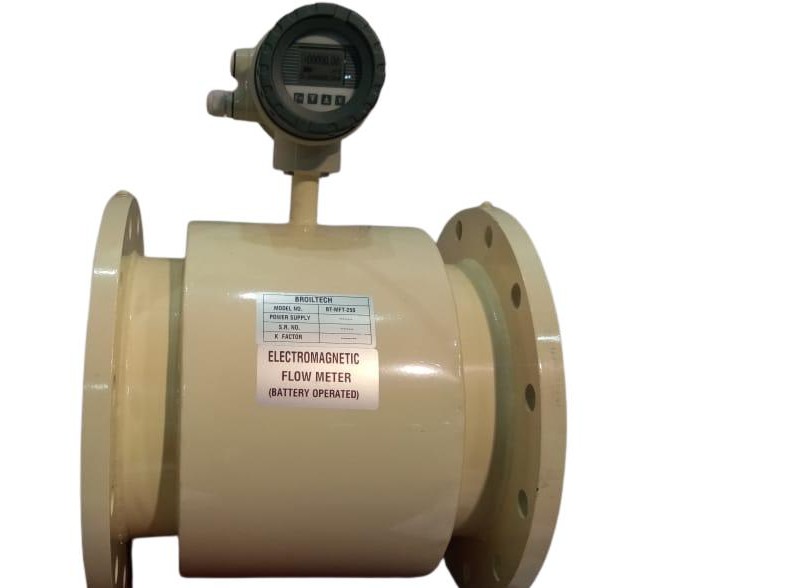

Electromagnetic Flow Meter (Magnetic Flow Meter)

Description:
Electromagnetic Flow Meter is a non-mechanical, contactless flow measurement device for conductive liquids. It operates on Faraday’s law of electromagnetic induction, providing accurate and reliable volumetric flow measurement without moving parts, making it ideal for corrosive or slurry liquids.

Specifications

• Measuring Principle: Electromagnetic induction
• Fluid Compatibility: Conductive liquids (water, chemicals, slurry, acids, alkalis)
• Flow Range: 0.1 to 12 m/s (depending on pipe size)
• Pipe Size:NB 10 to NB 2000 (customizable)
• Accuracy: ±0.5% of reading
• Material of Construction:
  • Body: SS304 / SS316 / Carbon Steel
  • Liner: PTFE / Rubber / PFA
  • Electrodes: SS316 / Hastelloy / Titanium
• Output Signal: 4–20 mA, Pulse, HART (optional)
• Power Supply: 24 V DC / 110–230 V AC
• Protection Class: IP65 / IP67
• Display: Local digital display (optional)
• Process Connection: Flanged, Wafer, or Tri-Clamp

Applications

• Water treatment and distribution
• Chemical and pharmaceutical process lines
• Slurry and abrasive liquids in mining and cement industries
• Food & beverage processing
• Effluent and wastewater monitoring
