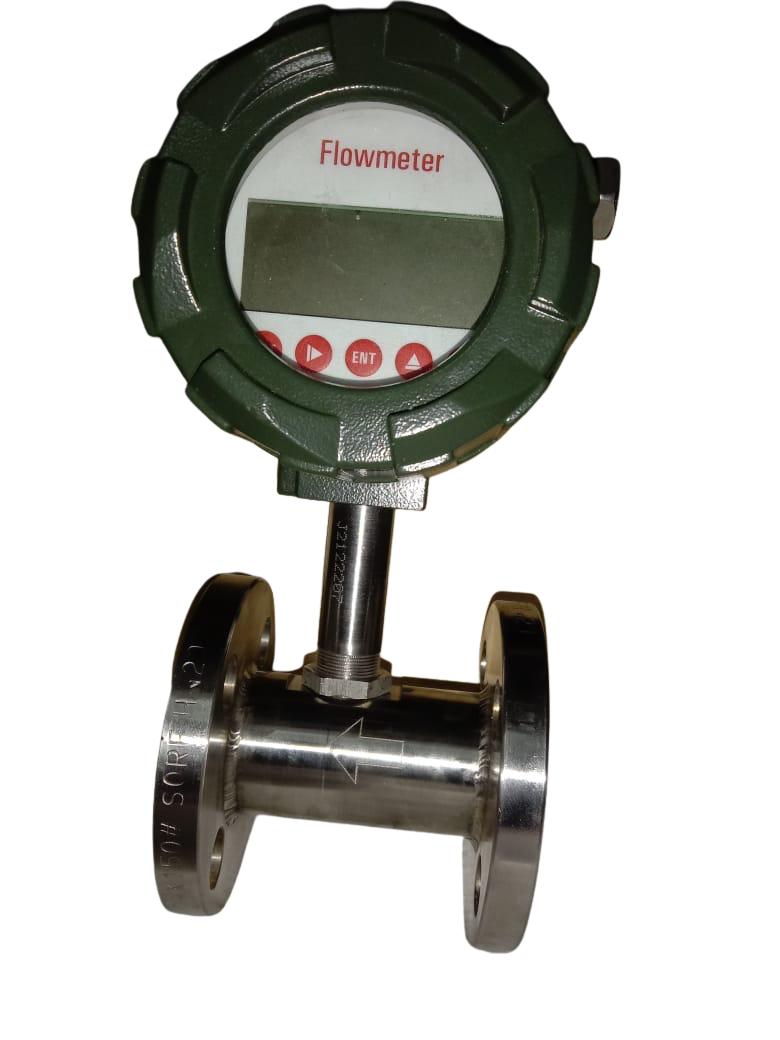

Turbine Flow Meter

Description:
Turbine Flow Meter is a velocity-based flow measurement device that uses a rotor (turbine) mounted in the flow stream. The rotation speed of the turbine is proportional to the volumetric flow rate, providing accurate and repeatable measurement of clean, low-viscosity liquids.

Specifications

• Type: Mechanical / electronic turbine flow meter
• Measuring Medium: Clean liquids (water, fuels, oils, chemicals)
• Flow Range: Model dependent, typical 0.5 to 500 m³/h
• Pipe Size (NB / DN):NB 15 to NB 200 (customizable)
• Accuracy: ±0.5% to ±1% of reading
• Body Material: SS304 / SS316 / Carbon Steel
• Rotor Material: SS316 / Alloy steel
• Output Signal: Pulse / 4–20 mA / HART (optional)
• Power Supply: 24 V DC / 110–230 V AC (for electronic output)
• Process Connection: Flanged or threaded BSP/NPT
• Operating Temperature: –20 °C to +150 °C (model dependent)
• Operating Pressure: Up to 25 bar (model dependent)
• Display: Local digital or optional remote

Applications

• Water and wastewater flow measurement
• Fuel oil, diesel, and lubricating oils
• Chemical and petrochemical industries
• Cooling water and utility circuits
• Custody transfer and process control
