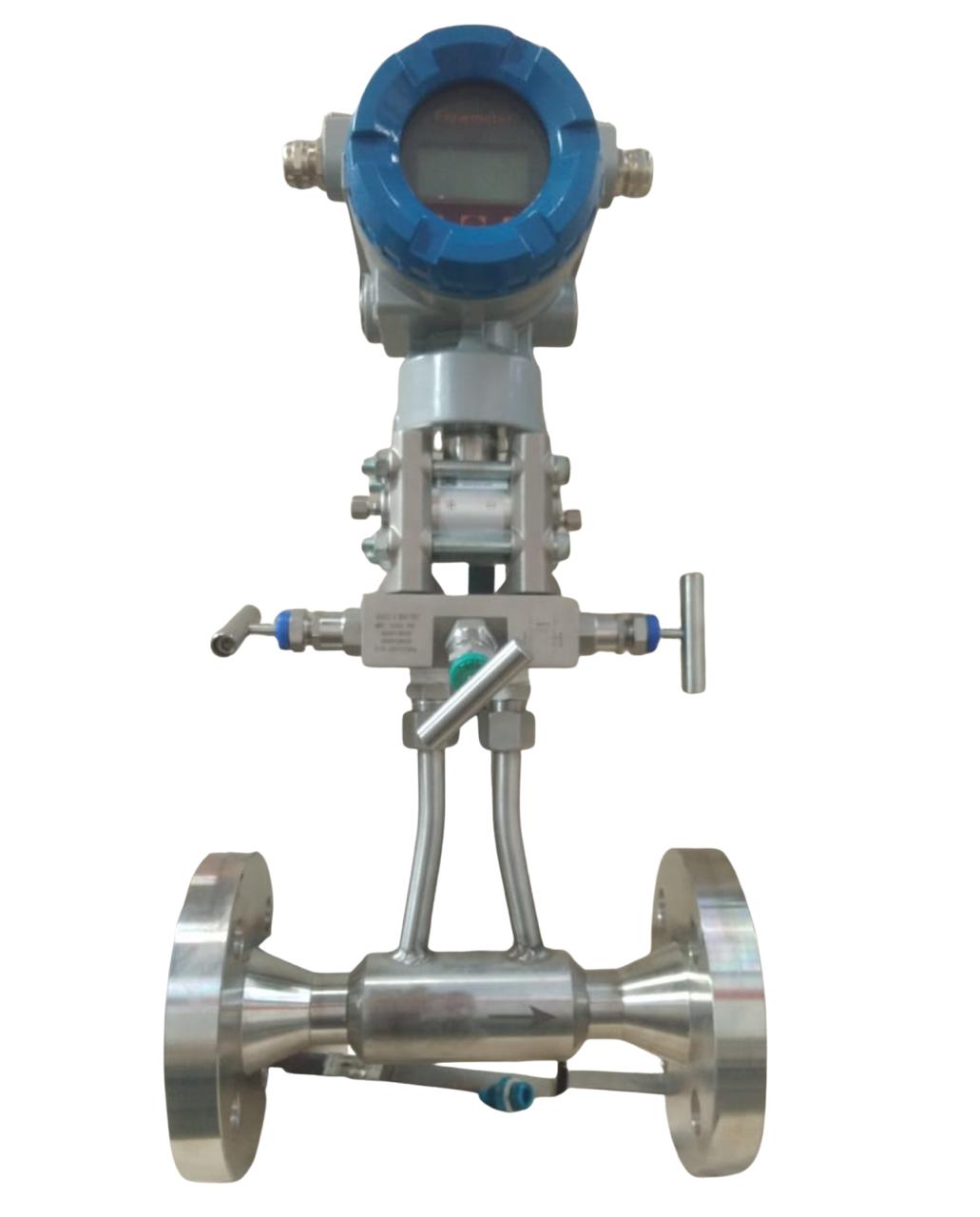

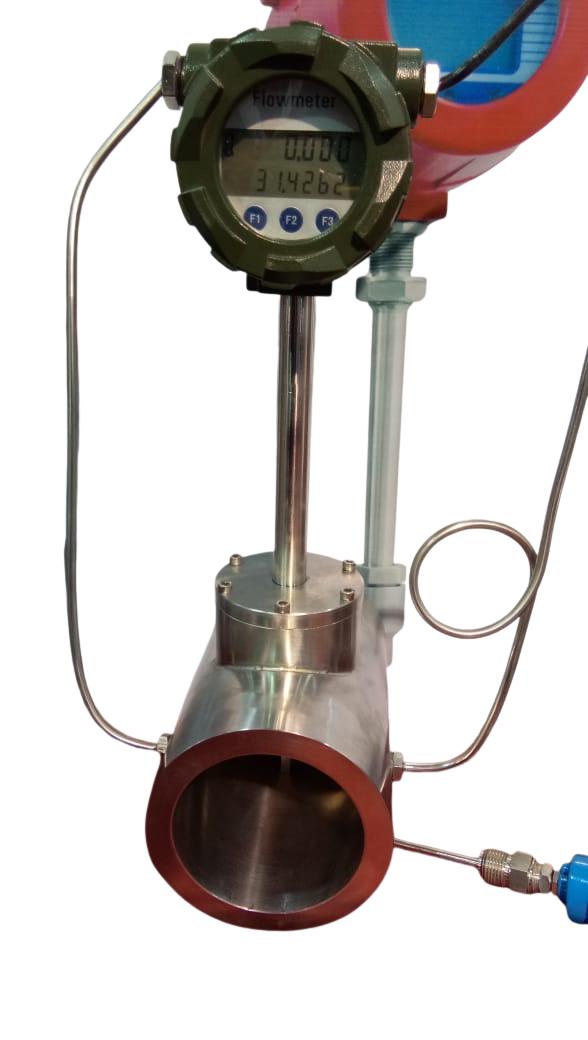

Vortex Flow Meter

Description:
Vortex Flow Meter is a non-mechanical flow measurement device that uses the principle of vortex shedding to measure liquid, gas, or steam flow. It is suitable for industrial applications requiring reliable, accurate, and low-maintenance flow monitoring.

Specifications

• Type: Vortex shedding flow meter
• Measuring Medium: Liquids, gases, or steam
• Flow Range: Model dependent, typically 0.1 to 5000 m³/h
• Pipe Size (NB / DN): DN15 to DN300 (customizable)
• Accuracy: ±0.5% to ±1% of reading
• Body Material: SS304 / SS316 / Carbon Steel
• Sensor / Bluff Body Material: SS316 / Alloy steel
• Output Signal: 4–20 mA, Pulse, HART, Modbus (optional)
• Power Supply: 24 V DC / 110–230 V AC
• Process Connection: Flanged or threaded BSP / NPT
• Operating Temperature: –40 °C to +200 °C (model dependent)
• Operating Pressure: Up to 25 bar (model dependent)
• Display: Local LCD / remote digital output

Applications

• Steam, air, and gas flow measurement
• Water, chemical, and process fluids
• Boiler feedwater and condensate lines
• HVAC and industrial utility systems
• Petrochemical and power plants
