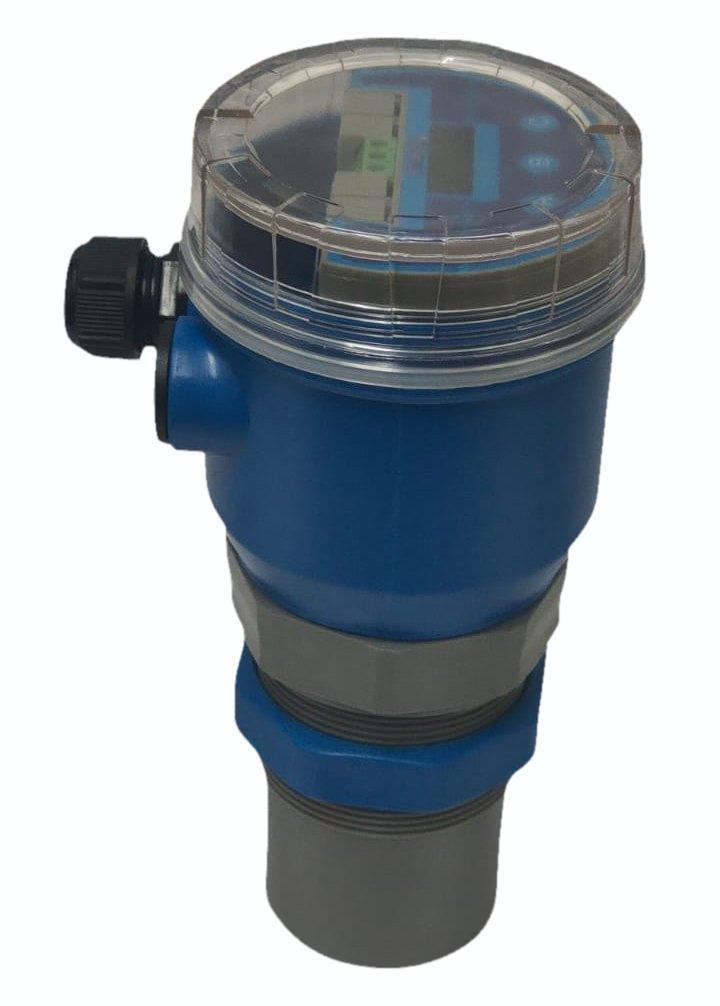

Ultrasonic Level Transmitter

Description:
Ultrasonic Level Transmitter is a non-contact level measurement instrument designed for continuous monitoring of liquids and solids. It operates by transmitting ultrasonic pulses and measuring the reflected echo, ensuring reliable performance in open tanks, sumps, canals, and process vessels.

Specifications

• Measuring Mode: Level
• Measuring Range: 0 to 15 meters
• Blanking Distance: 400 mm
• Beam Angle / Frequency: 9° / 50 kHz
• Power Supply: 7–28 V DC
• Output (2-wire): 4–20 mA or RS485
• Power Consumption: 500 mW @ 24 V DC
• Display: 4-digit LCD
• Accuracy / Resolution: 0.25 % FS / 1 mm
• Enclosure: Industrial plastic
• Transducer Material: PC
• Cable Gland: M20 × 1.5 mm
• Process Connection: 2″ BSP
• Operating Temperature: –10 °C to +60 °C
• Maximum Operating Pressure: –0.5 to 3 bar

Applications

• Storage tanks and sumps
• Water and wastewater treatment plants
• Effluent treatment plants
• Scrubbers and flotation cells
• Canals and irrigation systems
• Power plants (thermal and nuclear)
